R/T Bed
Reel Transport by DewEze

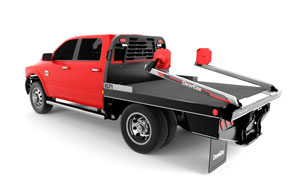

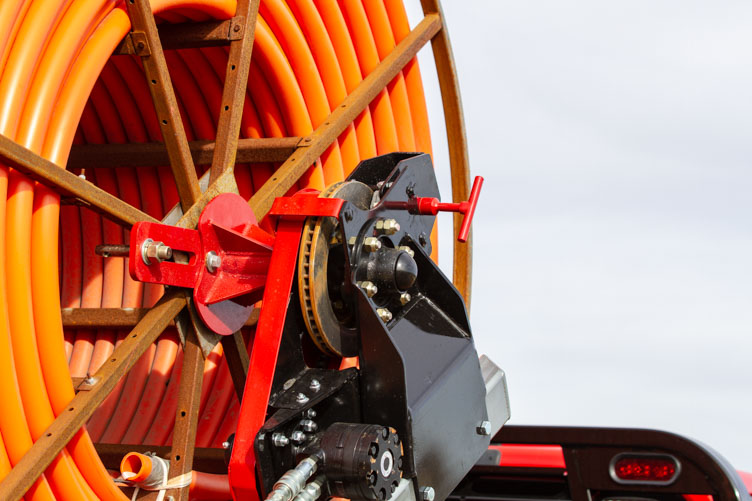

The RT Bed by DewEze is a versatile, self-loading reel lift designed to load and transport spools without the need for a trailer. Equipped with a pair of risers, lift bar and dual lift cylinders, the hydraulic power pack easily loads and unloads cable or fiber optic wire up to 3,100 lbs. Need to rig your flatbed into a rolling workshop on wheels? Simply dismantle the reel spindle to haul a variety of cargo on the slip resistant Gatorhyde deck. Are you ready to get rolling?
Reaching anywhere from 41 to 90 inches, this is the only parallel squeeze bed on the market.
The only flatbed to exclusively feature a clutch pump kit manufactured in house, DewEze hydraulic systems run independent of your truck’s transmission. The kit components are designed for your truck’s horsepower requirements.
The DewEze Reel Transport bed is equipped with a pair of risers, lift bar and dual lift cylinders, designed for easy loading and unloading, up to 3,100 lbs.
Powered by a DewEze hydraulic system, the R/T bed offers easy access to the rear couplers for moving or operating hydraulic equipment and tool circuits.
We build our beds to go the distance. Should something go wrong, rest easy knowing your R/T bed is covered by a two-year worry-free warranty, and one-year hydraulics warranty.
To assist with hauling needs, the R/T bed includes dummy arms that are assembled with tie down hooks. While the lift bar is not in use, the dummy arms align with the bed arms to create side rails on the perimeter of the deck.
Change the way you work in the field with the DewEze wireless remote. Complete any task with ease from the comfort of your cab, regardless of the weather.
All DewEze Flatbeds are finished by applying Gatorhyde lining to the deck surface. This polyurethane coating creates a corrosion-resistant surface, designed to withstand treacherous weather and built to last.
The R/T Flatbed is equipped with a 40,000lb recessed gooseneck ball which includes an adjustable hitch placement. A receiver hitch and D-rings complete the package to assist with all hauling needs.
High-quality LED lights transform your bed’s style and lighting performance. You won’t miss sharp light beams glowing from the headache rack, side clearance and tail/brake lights.
For reels that require additional reach, the DewEze R/T is available in an Extendable Arm model, allowing the arms to hydraulically telescope an additional 20 inches.
Keep your equipment organized and safe with a toolbox made from the same heavy steel construction. The across-the-bed toolbox spans 21” from front to back, and 78” long. The underbelly toolbox completes your storage needs with a step and rubber mat.
Fixed Position Light Brackets or Pivoting Light Brackets lead the way during after-hour tasks. Control the Pivot Light Kit to illuminate anywhere you want to feed, or keep it flush with the headache rack when not in use.
Get a move on with the synchronized squeeze feature. Both arms open and close at the same time, getting your work finished in less time.
| Model | 675 | 682 | 684 | 687 | 778 | 782 | 784 | 787 |
|---|---|---|---|---|---|---|---|---|
| Rear Wheels | Single | Dual | Dual | Dual | Dual | Dual | Dual | Dual |
| Dimensions | 7'1"x8'6" | 7'9"x9'4" | 7'9"x9'8" | 7'9"x11'6" | 8'x8'6" | 8'x9'4" | 8'x9'8" | 8'x11'6" |
| Truck Model | All Long Bed | '99 & Newer | '07 & Newer | '99 & Newer | All Long Bed | F-450 & F-550 | 4500 & 5500 | F-450 & F-550 |
| Cab-to-Axle | 56" | 60" | 60" | 84" | 56" | 60" | 60" | 84" |
| Truck Brand | All | Ford / Chevy | Dodge / Chevy | Ford / Chevy | All | Ford | Dodge / Chevy | Ford |
| Weight (lbs) | 2070 | 2270 | 2420 | 2540 | 2120 | 2270 | 2420 | 2540 |
| Set-up Code | Box Removal | Cab & Chassis | Cab & Chassis | Cab & Chassis | Box Removal | Cab & Chassis | Cab & Chassis | Cab & Chassis |
(All) truck brands referenced include Dodge, Ford and Chevrolet.
*Each bed has a lift capacity of 3,100 lbs., a 10 gallon reservoir, a 2-year warranty on the flatbed, and a 1-year warranty on the hydraulic and electrical system.
**Any Dual Wheel Cab Chassis truck '98 and older will need a 682 or 687 model depending on the cab-to-axle measurement.
